• P245/65R17 all-season BSW tires
• 17" steel wheels
• Mini spare tire
• Black roof rack side rails w/black end caps
• Body-color spoiler
• Upper body-color/lower black front/rear bumpers
• Black wheel lip molding
• Black lower bodyside cladding
• Foundry gray painted grille
• Bi-functional projector beam headlights
• LED tail lamps
• Black folding pwr mirrors -inc: integrated blind spot mirrors
• 2nd/3rd row privacy glass
• Black door handles
• Front speed sensitive wipers
• Rear 2-speed intermittent wiper
• Easy fuel capless fuel filler

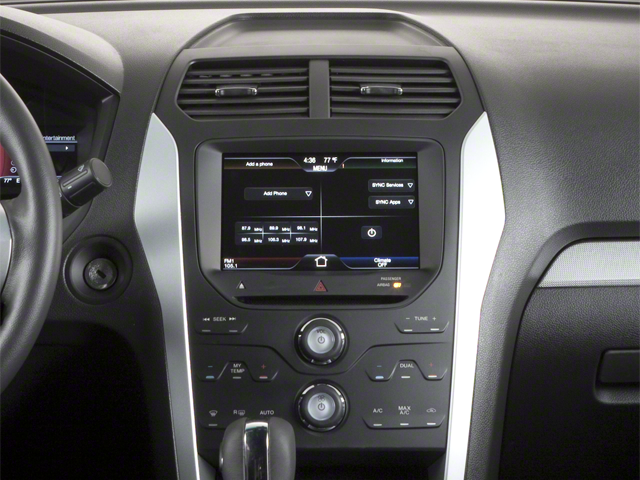

• AM/FM stereo w/CD/MP3 player
• (6) audio speakers

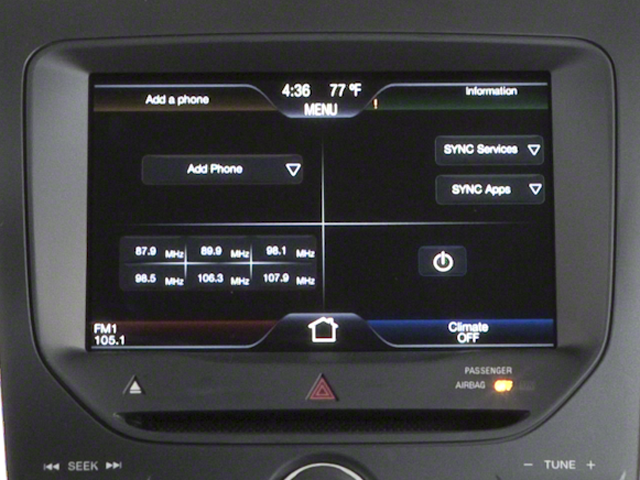

• MyFord -inc: (2) 4.2" color LCD displays, outside temp display, 5-way controls located on steering wheel
• Roof mounted antenna

• Cloth front bucket seats -inc: 6-way pwr driver seat, manual driver lumbar & recline, 2-way manual passenger seat w/manual recline

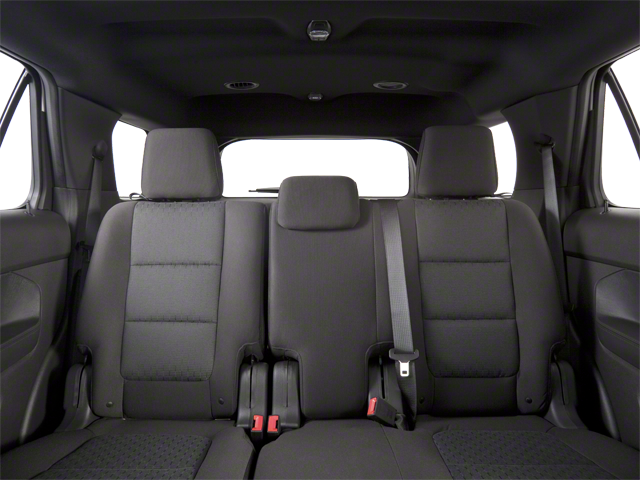

• 60/40 split-folding 2nd row bench seat -inc: fore/aft 40 section adjustable seat
• 50/50 split-folding 3rd row seat

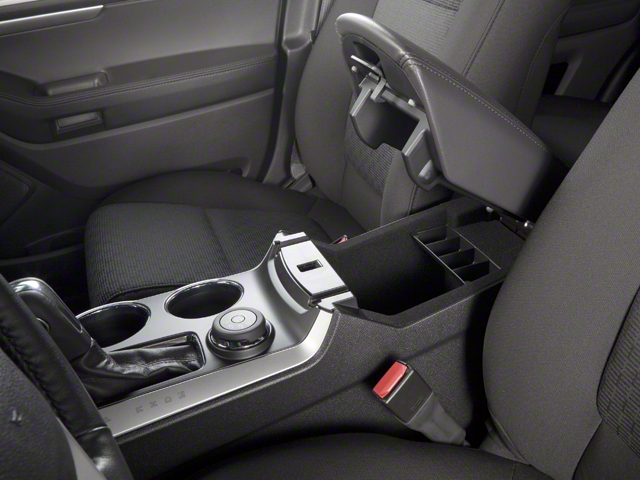

• Floor console w/armrest & storage
• Front/rear color-keyed carpeted floor mats

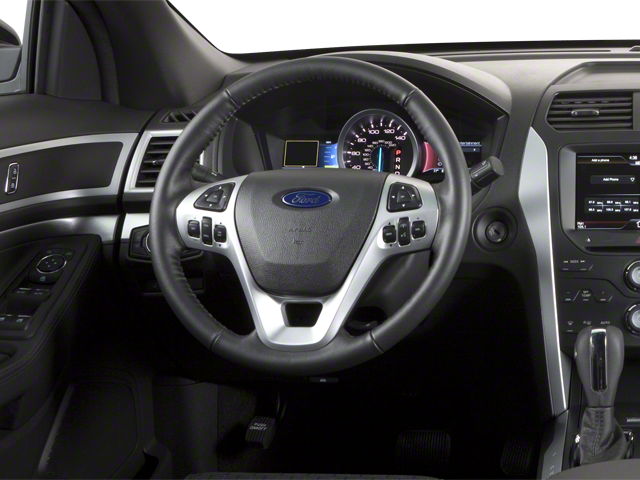

• Tilt/telescoping steering wheel w/audio & cruise controls

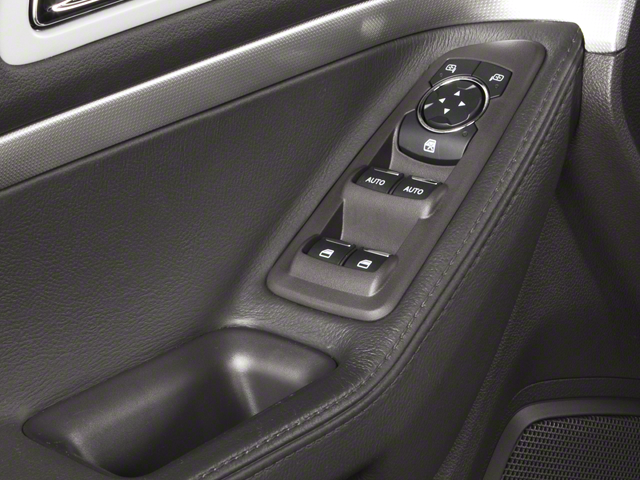

• Pwr windows w/1-touch driver down
• Pwr door locks
• Remote keyless entry w/(2) key fobs
• Cruise control
• SecuriLock passive anti-theft system
• Manual climate control w/aux air cond
• Air filtration system
• Rear window defogger
• Overhead console w/lights & sunglass holder
• Color-keyed cloth sunvisors -inc: covered vanity mirrors
• 2nd/3rd seat rear map light
• Media hub w/aux input jack
• 12V pwr points -inc: (2) front, (1) second row, (1) cargo area
• Dark Galvano appliques
• Front/rear scuff plates
• Grab handles -inc: (1) at passenger seat, (2) in 2nd row
• Illuminated entry
• Load floor tie-down hooks
• Cargo area hooks

• Hill start assist
• 4-wheel antilock disc brakes
• Traction control
• AdvanceTrac w/Roll Stability Control (RSC)
• Hill descent control
• Terrain management system
• 2nd generation dual front airbags
• 2nd generation dual front side seat airbags
• Front passenger sensing system
• Safety Canopy -inc: side curtain airbags, rollover sensor
• MyKey system -inc: top speed limiter, audio volume limiter, early low fuel warning, programmable sound chimes, Beltminder w/audio mute
• SOS Post Crash Alert System
• Seat belts -inc: pretensioners, energy management system, adjustable height in 1st row
• Belt-Minder feature
• Rear door child safety locks
• LATCH system on rear outboard seat locations
• Tire pressure monitoring system

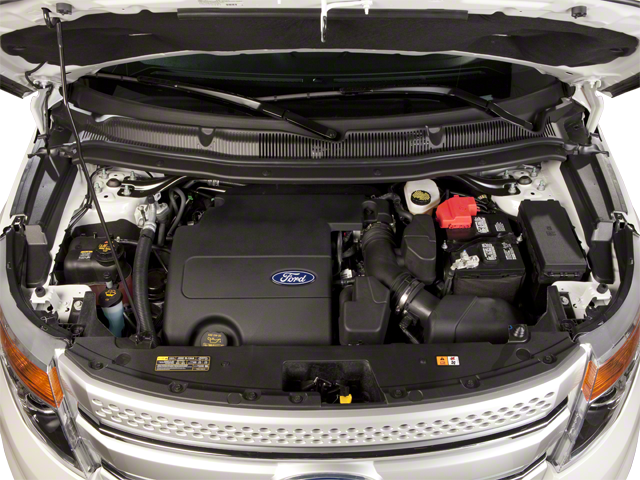

3.5L TI-VCT V6 ENGINE

• 3.39 axle ratio (STD)

• 85B

• Vehicle
• EPA Classification: Sport Utility Vehicle - 4WD
• Mileage
• Fuel Economy Est-Combined (MPG): 19
• EPA Fuel Economy Est - City (MPG): 17
• EPA Fuel Economy Est - Hwy (MPG): 23
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 650
• Maximum Alternator Capacity (amps): 175
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Base Curb Weight (lbs): 4697
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 2000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 200
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 2000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 300
• Suspension
• Suspension Type - Front: MacPherson strut
• Suspension Type - Rear: Multi-Link
• Suspension Type - Front (Cont.): w/Coil Springs
• Suspension Type - Rear (Cont.): w/Coil Springs
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.259
• Stabilizer Bar Diameter - Rear (in): 0.866
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): - TBD -
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Tires
• Front Tire Order Code: - TBD -
• Rear Tire Order Code: - TBD -
• Front Tire Size: P245/65R17
• Rear Tire Size: P245/65R17
• Spare Tire Size: Compact
• Wheels
• Front Wheel Size (in): 17 x - TBD -
• Rear Wheel Size (in): 17 x - TBD -
• Spare Wheel Size (in): Compact
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), Overall: 15.750
• Lock to Lock Turns (Steering): - TBD -
• Turning Diameter - Curb to Curb (ft): 38.900
• Turning Diameter - Wall to Wall (ft): - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 18.600
• Exterior Dimensions
• Wheelbase (in): 112.600
• Length, Overall (in): 197.100
• Width, Max w/o mirrors (in): 78.900
• Height, Overall (in): 70.400
• Track Width, Front (in): 67.000
• Track Width, Rear (in): 67.000
• Min Ground Clearance (in): 7.600
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Liftover Height (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): - TBD -
• Cargo Area Length @ Floor to Seat 2 (in): - TBD -
• Cargo Area Length @ Floor to Seat 3 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): - TBD -
• Cargo Box (Area) Height (in): - TBD -
• Cargo Volume to Seat 1 (ft³): 80.700
• Cargo Volume to Seat 2 (ft³): 43.800
• Cargo Volume to Seat 3 (ft³): 21.000
• Interior Dimensions
• Passenger Capacity: 7
• Passenger Volume (ft³): 151.700
• Front Head Room (in): 41.400
• Front Leg Room (in): 40.600
• Front Shoulder Room (in): 61.300
• Front Hip Room (in): 57.300
• Second Head Room (in): 40.500
• Second Leg Room (in): 39.800
• Second Shoulder Room (in): 61.000
• Second Hip Room (in): 56.700
• Third Head Room (in): 37.800
• Third Leg Room (in): 33.200
• Third Shoulder Room (in): 50.800
• Third Hip Room (in): 40.700
• Summary
• Vehicle Name: Ford Explorer
• Body Style: Sport Utility Vehicle
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.6
