• Chrome roof rails
• Painted body-color bumpers
• Body-color running boards
• Body-color lower body-side cladding
• Body-color wheel lip molding
• Body-color front/rear fascias
• Body-color grille
• Complex reflector headlamps w/autolamp feature & blackout treatment
• Rainlamp feature
• Fog lamps
• Color-keyed pwr-folding heated mirrors-inc: integrated turn signals, security approach lamps, memory
• Privacy glass
• Speed-sensitive intermittent windshield wipers
• Rear window intermittent wiper w/washer
• Chrome rear license plate brow
• Chrome door handles
• Rear liftgate w/flip-up glass

• Perforated leather low-back 10-way pwr front captains chairs-inc: pwr lumbar, 3-level heating/cooling, 2-position driver seat memory, 2-way adjustable head rests
• Leather 2nd row 40/20/40 split bench seat-inc: sliding center portion, recline, fold flat feature, carpeted seatbacks
• Vinyl PowerFold 3rd row 60/40 split bench seat-inc: fold flat feature
• Head restraints at all outboard seating positions
• Chrome-trimmed floor console-inc: storage bin, coinholder, rear passenger audio controls, headphone jacks, tissue holder, padded cover, front/rear pwr points, auxiliary HVAC controls, pen holder
• Color-keyed floor carpeting
• Carpeted floor mats for 1st/2nd row
• Wood & color-keyed leather-wrapped steering wheel-inc: audio, cruise & climate controls
• Tilt steering column
• Pwr adjustable pedals w/memory
• Analog instrumentation-inc: voltmeter, oil pressure, water temp, tachometer
• Message center-inc: million mile odometer, trip odometer, average fuel economy, distance to empty, trip elapsed time, outside temp, compass, message center warnings, check gauges
• Reverse sensing system
• Tire pressure monitoring system (TPMS)
• Pwr windows w/driver one-touch-down
• Pwr rear quarter windows
• Pwr door locks-inc: auto lock
• Remote keyless entry w/(2) key fobs, illuminated entry, keypad
• Universal garage door opener
• Cruise control
• SecuriLock passive anti-theft system
• Pwr accessory delay
• Dual zone electronic automatic temp control air conditioning w/auxiliary climate controls & exterior temp read out
• Rear seat heat ducts
• Rear window defogger
• Audiophile AM/FM stereo w/6-disc in-dash CD changer-inc: clock, (7) speakers including subwoofer, 340-watt amp, speed-compensated volume, RDS, partitioned audio, MP3 capability
• Concealed antenna in RH quarter glass
• Cup holders-inc: (2) front/(2) rear in front console, (2) door trim panels, (3) rear quarter trim panels
• Black instrument panel-inc: cigarette lighter, pwr point w/cap, auxiliary audio input jack
• Front/rear door map pockets
• Electrochromic rearview mirror
• Full-length overhead console-inc: map lights, sunglasses holder, conversation mirror
• Color-keyed cloth headliner
• Color-keyed cloth sunvisors w/auxiliary visors, dual illuminated mirrors
• Assist handles-inc: color-keyed (2) front passengers, (2) second row
• 2nd & 3rd row coat hooks
• Lights-inc: glove box, front door approach, front dome/map, rear cargo, 2nd row map lights, illuminated entry, theater lighting
• Cargo area pwr point

• 4-wheel pwr disc brakes w/anti-lock & brake assist
• Personal safety system-inc: crash severity sensor, dual-stage front airbags, driver seat position sensor
• Safety Canopy
• Side thorax air bags
• Front 3-point seat belts-inc: adjustable shoulder harness, load limiting retractors, pretensioners, usage sensors
• 3-point seat belts in rear outboard seating positions
• Beltminder system
• Child safety locks on rear doors
• LATCH system on rear outboard seats
• AdvanceTrac w/roll stability control (RSC)
• Adaptive stroking steering column
• Side intrusion door beams

• **ALL STANDARDS ARE 2008 UNLESS OTHERWISE NOTED**

5.4L SOHC SEFI 24-VALVE V8 ENGINE

• (STD)

• Vehicle
• Rear Door Type: Liftgate
• Mileage
• EPA Fuel Economy Est - City (MPG): 12 (2006)
• EPA Fuel Economy Est - Hwy (MPG): 16 (2006)
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 650
• Maximum Alternator Capacity (amps): 150
• Maximum Alternator Watts: 2250
• Cooling System
• Total Cooling System Capacity (qts): 13
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3700
• Gross Axle Wt Rating - Rear (lbs): 4250
• Curb Weight - Front (lbs): 2947
• Curb Weight - Rear (lbs): 2836
• Gross Vehicle Weight Rating Cap (lbs): 7700
• Gross Combined Wt Rating (lbs): 12100
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 600
• Suspension
• Suspension Type - Front: Double Wishbone
• Suspension Type - Rear: Multi-Link
• Spring Capacity - Front (lbs): 3700
• Spring Capacity - Rear (lbs): 4250
• Axle Type - Front: Independent
• Axle Type - Rear: Independent
• Axle Capacity - Front (lbs): 3700
• Axle Capacity - Rear (lbs): 4250
• Axle Ratio (:1) - Front: 3.31
• Axle Ratio (:1) - Rear: 3.31
• Shock Absorber Diameter - Front (mm): 34.9
• Shock Absorber Diameter - Rear (mm): 34.9
• Stabilizer Bar Diameter - Front (in): 1.4
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x - TBD -
• Rear Brake Rotor Diam x Thickness (in): 13.5 x - TBD -
• Tires
• Front Tire Order Code: T5P
• Rear Tire Order Code: T5P
• Front Tire Size: P255/70R18
• Rear Tire Size: P255/70R18
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): 2305
• Rear Tire Capacity (lbs): 2305
• Spare Tire Capacity (lbs): 2305
• Revolutions/Mile @ 45 mph - Front: 654
• Revolutions/Mile @ 45 mph - Rear: 654
• Revolutions/Mile @ 45 mph - Spare: 654
• Wheels
• Front Wheel Size (in): 18 x 8.5
• Rear Wheel Size (in): 18 x 8.5
• Spare Wheel Size (in): 18 x 8.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Variable Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 20
• Turning Diameter - Curb to Curb (ft): 40.83
• Turning Diameter - Wall to Wall (ft): 42.16
• Frame
• Frame Type: Fully Boxed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 28
• Fuel Tank Location: Midship
• Doors
• Side Door Type: - TBD -
• Exterior Dimensions
• Wheelbase (in): 119.0
• Length, Overall w/rear bumper (in): 206.5
• Width, Max w/o mirrors (in): 78.8
• Height, Overall (in): 77.2
• Overhang, Front (in): 39.2
• Overhang, Rear w/bumper (in): 48.3
• Ground to Top of Load Floor (in): 34.4
• Ground Clearance, Front (in): 8.7
• Ground Clearance, Rear (in): 8.7
• Rear Door Opening Height (in): 34.6
• Rear Door Opening Width (in): 56.7
• Side Door Opening Height (in): - TBD -
• Side Door Opening Width (in): - TBD -
• Step Up Height - Front (in): - TBD -
• Step Up Height - Side (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): - TBD -
• Cargo Area Length @ Floor to Seat 1 (in): 82.5
• Cargo Area Length @ Floor to Seat 2 (in): 44.4
• Cargo Area Length @ Floor to Seat 3 (in): 13.1
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 49.2
• Cargo Box (Area) Height (in): - TBD -
• Cargo Volume to Seat 1 (ft³): 108.3
• Cargo Volume to Seat 2 (ft³): 55.0
• Cargo Volume to Seat 3 (ft³): 18.6
• Interior Dimensions
• Passenger Capacity: 8
• Front Head Room (in): 39.6
• Front Leg Room (in): 41.1
• Front Shoulder Room (in): 63.2
• Front Hip Room (in): 60.2
• Second Head Room (in): 39.8
• Second Leg Room (in): 39.1
• Second Shoulder Room (in): 63.7
• Second Hip Room (in): 59.9
• Third Head Room (in): 38.3
• Third Leg Room (in): 37.7
• Third Shoulder Room (in): 51.9
• Third Hip Room (in): 50.2
• Summary

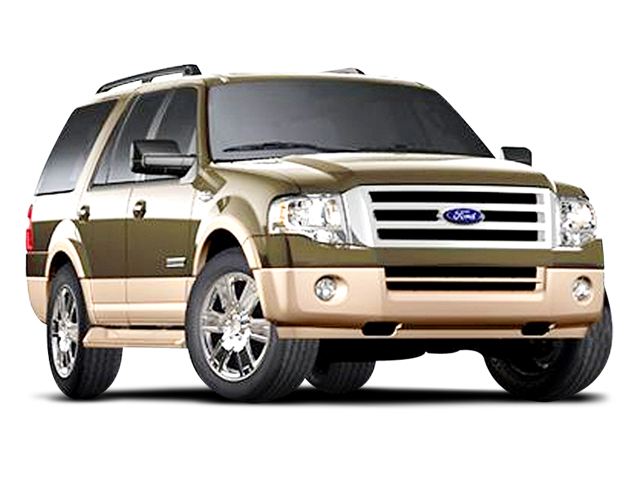

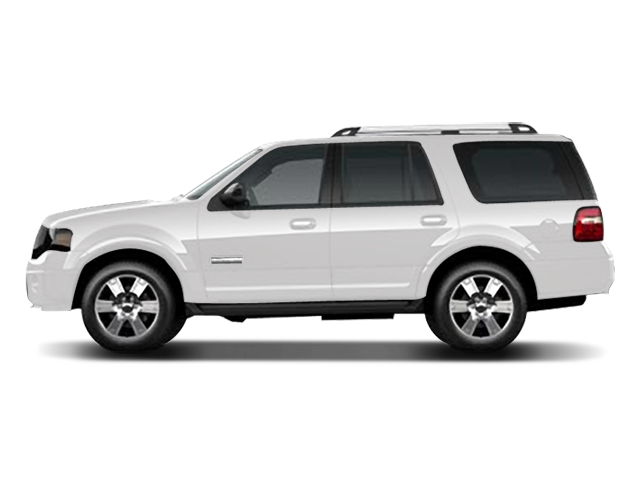

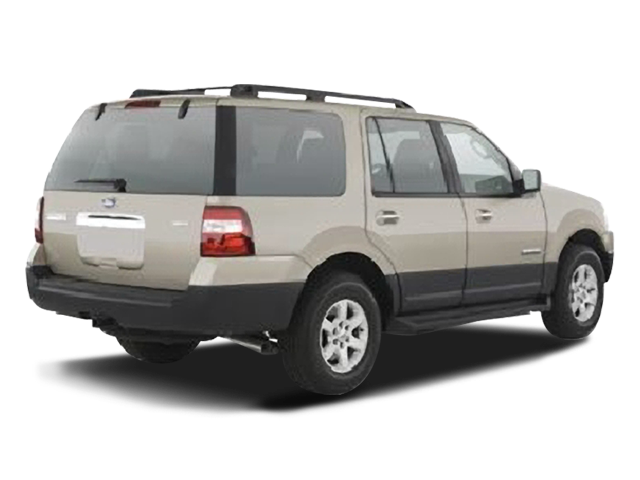

• Vehicle Name: Ford Expedition
• Body Style: 4 Door
• Body Code: 119" WB
